Ball & Butterfly Valves
Leading Manufacturers, Exporters and Wholesaler of industrial flow control ss flanged ball valve, Industrial Screwed Single Piece Ball Valve, PN40 Cast Iron Flanged Three Piece Ball Valve, PN40 Cast Iron Screwed Single Piece Ball Valve, PN40 Wcb Flanged Three Piece Ball Valve, PN40 Wcb Screwed Three Piece Ball Valve, SS304 Flanged Three Piece Ball Valve, SS304 Flanged Two Piece Ball Valve, SS304 Flanged Two Piece Ball Valve for Industrial Flow Control, SS304 Screwed Three Piece Ball Valve, SS316 Flanged Three Piece Ball Valve, SS316 Flanged Two Piece Ball Valve, SS316 Screwed Three Piece Ball Valve and Wafer Type Butterfly Valve from Karnal.

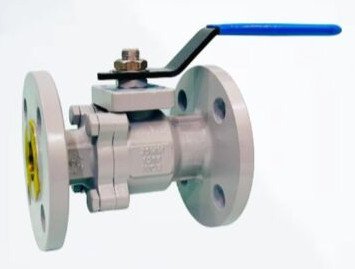

| Business Type | Manufacturer, Exporter, Supplier |
| Material | Stainless Steel (SS304 / SS316) |
| Usage | Water, Oil, Gas, Chemical & Industrial Pipeline Systems |
| Type | Ball Valve |
| Size Range | 15mm To 200mm (standard Range) |
| Pressure Rating | Class 150 (typical) |
| End Connection | Flanged End |
| Port Type | Full Bore |
| Seat & Packing Material | PTFE (Teflon) |
| Operation Type | Lever Operated |
| Performance | Corrosion Resistant, Leak Proof & Smooth Operation |
| Business Type | Manufacturer, Exporter, Supplier |
| Material | Cast Stainless Steel / CF8 / CF8M / Cast Iron |
| Application | Water, Oil, Gas, Chemical & Industrial Pipeline Systems |
| Pressure Rating | PN40 |
| Product Type | Single Piece Ball Valve |
| SKU | UPC-SEB-410 |
| Size Range | 15mm To 80mm |
| Product Standard | BS 5351 |
| End Connection | Screwed End |
| Port Type | Full Bore |
| Seat Type | Renewable Seat |
| Seat & Packing Material | PTFE (Teflon) |
| Ball Material | CF8 / CF8M / WCB |
| Operation Type | Lever Operated |
| Test Pressure | BTP 60 Bar Hydraulic / STP 44 Bar Hydraulic / 7 Bar Air |
| Performance | Compact Design, Leak Proof & Smooth Operation |

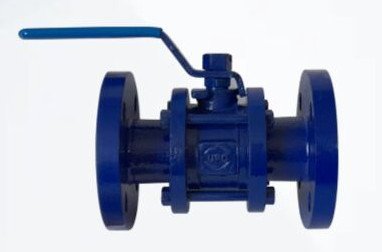

| Business Type | Manufacturer, Exporter, Supplier |
| Type | Three Piece Ball Valve |
| Material | Cast Iron |
| SKU | UPC-TFEB-482 |
| Model No. | UPC-TFEB-482 |
| Size Range | 15mm To 200mm |
| Pressure Rating | PN40 |
| End Connection | Flanged End |
| Port Type | Full Bore |
| Seat & Packing Material | PTFE (Teflon) |
| Operation Type | Lever Operated |
| Test Pressure | BTP 60 Bar Hydraulic / STP 44 Bar Hydraulic / 7 Bar Air |
| Performance | Heavy Duty, Leak Proof & Long Service Life |
| Application | Water, Oil, Gas & Industrial Pipeline Systems |
| Business Type | Manufacturer, Exporter, Supplier |
| Type | Single Piece Ball Valve |
| Material | Cast Iron |
| SKU | UPC-SEB-434 |
| Size Range | 15mm To 80mm |
| Pressure Rating | PN40 |
| Product Standard | BS 5351 |
| End Connection | Screwed End |
| Port Type | Full Bore |
| Seat Type | Renewable Seat |
| Seat & Packing Material | PTFE (Teflon) |
| Ball Material | CF8 / CF8M / WCB |
| Operation Type | Lever Operated |
| Test Pressure | BTP 60 Bar Hydraulic / STP 44 Bar Hydraulic / 7 Bar Air |
| Performance | Compact Design, Leak Proof & Durable Operation |
| Application | Water, Oil, Gas, Chemical & Industrial Pipeline Systems |
| Business Type | Manufacturer, Exporter, Supplier |
| Material | Cast Carbon Steel (WCB) |
| End Connection | Flanged End |
| Application | Oil & Gas, Water, Chemical & Industrial Pipeline Systems |
| Type | Three Piece Ball Valve |
| Pressure Rating | PN40 |
| SKU | UPC-TFEB-468 |
| Size Range | 15mm To 200mm |
| Port Type | Full Bore |
| Seat & Packing Material | PTFE (Teflon) |
| Operation Type | Lever Operated |
| Test Pressure | BTP 60 Bar Hydraulic / STP 44 Bar Hydraulic / 7 Bar Air |
| Performance | High Strength, Leak Proof & Durable Operation |
| Business Type | Manufacturer, Exporter, Supplier |
| Type | Three Piece Ball Valve |
| Pressure Rating | PN40 |
| Material | Cast Carbon Steel (WCB) |
| End Connection | Screwed End |
| Application | Oil & Gas, Water, Chemical & Industrial Pipeline Systems |
| SKU | UPC-TSEB-464 |
| Size Range | 15mm To 50mm |
| Port Type | Full Bore |
| Seat Type | Renewable Seat |
| Seat & Packing Material | PTFE (Teflon) |
| Operation Type | Lever Operated |
| Test Pressure | BTP 60 Bar Hydraulic / STP 44 Bar Hydraulic / 7 Bar Air |
| Performance | High Strength, Leak Proof & Durable Operation |
| Business Type | Manufacturer, Exporter, Supplier |
| End Connection | Flanged End |
| Application | Water, Oil, Gas, Chemical & Industrial Pipeline Systems |
| Type | Three Piece Ball Valve |
| Pressure Rating | Class 150 |
| Material | Stainless Steel SS304 (CF8) |
| SKU | UPC-TFEB-412 |
| Size Range | 15mm To 200mm |
| Product Standard | BS 5351 |
| Port Type | Full Bore |
| Seat & Packing Material | PTFE (Teflon) |
| Operation Type | Lever Operated |
| Test Pressure | BTP 30 Bar Hydraulic / STP 22 Bar Hydraulic |
| Performance | Corrosion Resistant, Leak Proof & Long Service Life |
| Business Type | Manufacturer, Exporter, Supplier |
| Product Type | Two Piece Ball Valve |
| SKU | UPC-FEB-481 |
| Model No. | UPC-FEB-481 |
| Size Range | 15mm To 200mm |
| Pressure Rating | Class 300 |
| Product Standard | BS 5351 |
| Body Material | Stainless Steel SS304 (CF8) |
| End Connection | Flanged End |
| Port Type | Full Bore |
| Seat & Packing Material | PTFE (Teflon) |
| Operation Type | Lever Operated |
| Test Pressure | BTP 30 Bar Hydraulic / STP 22 Bar Hydraulic |
| Performance | Leak Proof, Corrosion Resistant & Smooth Operation |
| Application | Water, Oil, Gas, Chemical & Industrial Pipeline Systems |
3,000.00 - 13,500.00 / Piece
Get Best Price
| Business Type | Manufacturer, Exporter, Supplier |
| Product Type | Two Piece Ball Valve |
| SKU | UPC-FEB-413 |
| Size Range | 15mm To 200mm |
| Pressure Rating | Class 150 |
| Product Standard | BS 5351 |
| Body Material | Stainless Steel SS304 (CF8) |
| End Connection | Flanged End |
| Port Type | Full Bore |
| Seat & Packing Material | PTFE (Teflon) |
| Operation Type | Lever Operated |
| Test Pressure | BTP 30 Bar Hydraulic / STP 22 Bar Hydraulic |
| Performance | Corrosion Resistant, Leak Proof & Smooth Operation |
| Application | Water, Oil, Gas, Chemical & Industrial Pipeline Systems |

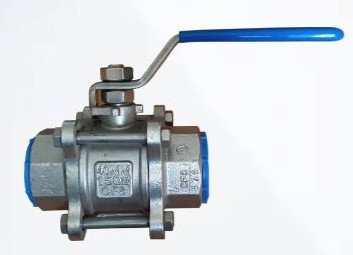

| Business Type | Manufacturer, Exporter, Supplier |
| Type | Three Piece Ball Valve |
| Pressure Rating | Class 150 |
| Material | Stainless Steel SS304 (CF8) |
| End Connection | Screwed End |
| Application | Water, Oil, Gas, Chemical & Industrial Pipeline Systems |
| SKU | UPC-TSEB-411 |
| Size Range | 15mm To 50mm |
| Product Standard | BS 5351 |
| Port Type | Full Bore |
| Seat Type | Renewable Seat |
| Seat & Packing Material | PTFE (Teflon) |
| Operation Type | Lever Operated |
| Test Pressure | BTP 60 Bar Hydraulic / STP 44 Bar Hydraulic / 7 Bar Air |
| Performance | Corrosion Resistant, Leak Proof & Smooth Operation |
| Business Type | Manufacturer, Exporter, Supplier |
| Application | Water, Oil, Gas, Chemical & Industrial Pipeline Systems |
| Type | Three Piece Ball Valve |
| Pressure Rating | Class 150 |
| Material | Stainless Steel SS316 (CF8M) |
| End Connection | Flanged End |
| SKU | UPC-TFEB-458 |
| Size Range | 15mm To 200mm |
| Product Standard | BS 5351 |
| Port Type | Full Bore |
| Seat & Packing Material | PTFE (Teflon) |
| Operation Type | Lever Operated |
| Test Pressure | BTP 30 Bar Hydraulic / STP 22 Bar Hydraulic |
| Performance | Corrosion Resistant, Leak Proof & Durable Design |
| Business Type | Manufacturer, Exporter, Supplier |
| Product Type | Two Piece Ball Valve |
| SKU | UPC-FEB-467 |
| Size Range | 15mm To 200mm |
| Pressure Rating | Class 150 / Class 300 |
| Product Standard | BS 5351 |
| Body Material | Stainless Steel SS316 (CF8M) |
| End Connection | Flanged End |
| Port Type | Full Bore |
| Seat & Packing Material | PTFE (Teflon) |
| Operation Type | Lever Operated |
| Test Pressure | BTP 30 Bar Hydraulic / STP 22 Bar Hydraulic |
| Performance | High Corrosion Resistance, Leak Proof & Durable Operation |
| Application | Chemical, Water, Oil & Industrial Pipeline Systems |
| Business Type | Manufacturer, Exporter, Supplier |
| Material | Stainless Steel SS316 (CF8M) |
| End Connection | Screwed End |
| Application | Water, Oil, Gas, Chemical & Industrial Pipeline Systems |
| Type | Three Piece Ball Valve |
| Pressure Rating | Class 150 |
| SKU | UPC-TSEB-465 |
| Size Range | 15mm To 50mm |
| Product Standard | BS 5351 |
| Port Type | Full Bore |
| Seat & Packing Material | PTFE (Teflon) |
| Operation Type | Lever Operated |
| Test Pressure | BTP 60 Bar Hydraulic / STP 44 Bar Hydraulic / 7 Bar Air |
| Performance | Corrosion Resistant, Leak Proof & Smooth Operation |

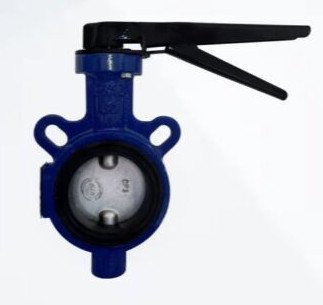

| Business Type | Manufacturer, Exporter, Supplier |
| Usage/Application | Water Supply, HVAC, Chemical & Industrial Pipeline Systems |
| Product Type | Butterfly Valve |
| SKU | UPC-BFV-414 |
| Size Range | 40mm To 300mm |
| Product Standard | BS 5155 / API 609 / IS 13095 |
| Body Material | Cast Iron / WCB / Stainless Steel |
| Design Type | Wafer Type |
| Seat Material | EPDM / NBR (Molded) |
| Disc Material | SG Iron (ASTM A536) / CF8 / CF8M |
| Trim Material | 13% Cr Stainless Steel (ASTM A276 Gr. 410) |
| Packing Material | PTFE / Nylon |
| Test Pressure | BTP 15 Bar Hydraulic / STP 11 Bar Hydraulic |
| Performance | Tight Sealing, Lightweight & Easy Operation |
