5,500.00 - 22,000.00 / Piece
| Business Type | Manufacturer, Exporter, Supplier |
| Material | SS316 (CF8M) |
| End Connection | Flanged (BS 4504 / DIN 2545 PN40 RF) |
| Usage | Chemical, Petrochemical, Water Treatment, Industrial Pipeline Systems |
| Click to view more | |
Product Details
Type

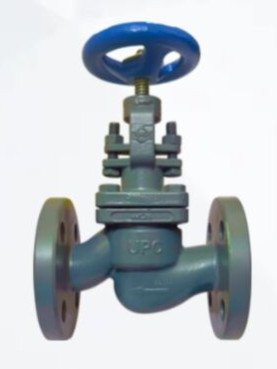

Stainless Steel Globe Valve
Pressure Rating
PN40
SKU
UPC-GBV-486
Model No.
UPC-GBV-427
Size Range
15mm To 200mm
Product Standard
BS 5160 / DIN 2401
Design Type
Bolted Bonnet, OS&Y, Rising Stem
Trim Material
13% Cr Stainless Steel (AISI 410)
Test Pressure
BTP 60 Kg/cm² Hydraulic / STP 40 Kg/cm² Hydraulic
Max Temperature
425°C (800°F)
Performance
Corrosion Resistant, Precise Flow Control, High Temperature Stability
Looking for "PN40 SS316 Flanged Globe Valve" ?
Piece
